From compact to large-format.
Boards from 70 × 50 mm (2.7 × 2 in) up to 1,480 × 510 mm (58.3 × 20.1 in), with thicknesses from 0.4–6.0 mm.
[ 01 / CAPABILITY ]

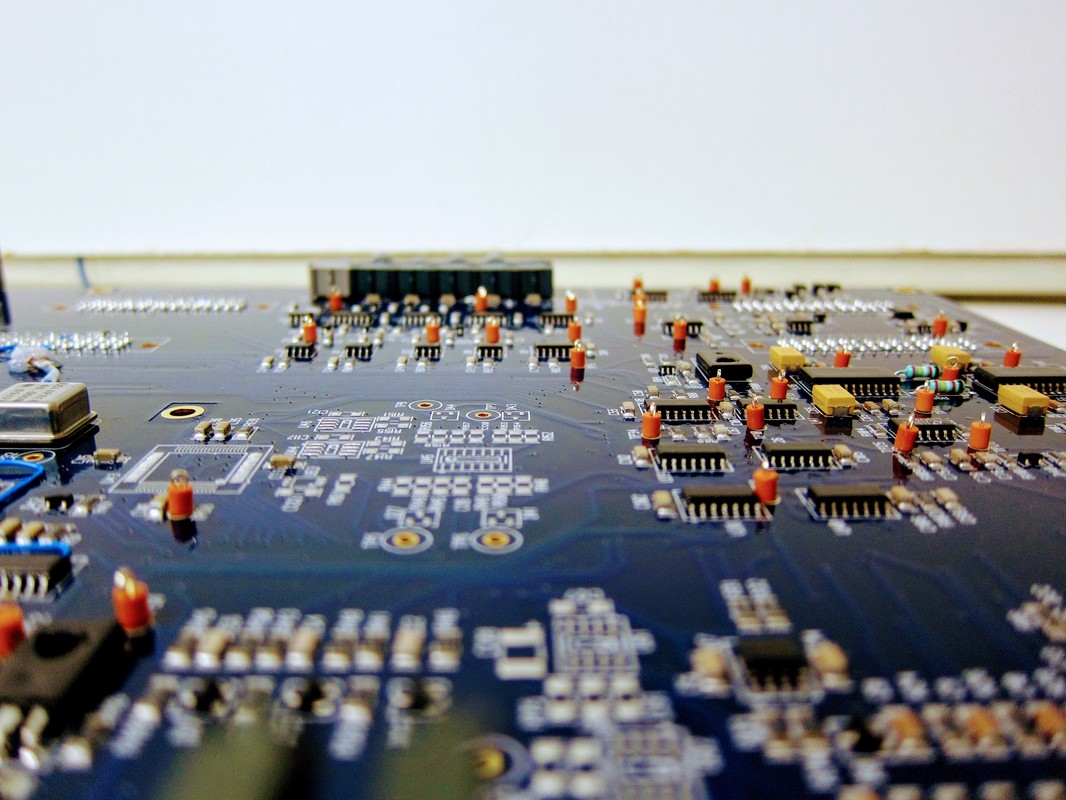

PCB / SMT Assembly
Surface-mount and through-hole printed circuit board assembly in the heart of Silicon Valley, from early builds through repeat production.
Discuss your build ↘
Built in Silicon Valley[ PROJECT FIT ]
Built around
your requirements.
For teams that need a local manufacturing partner to carry a board from RFQ and material coordination through assembly, inspection, and delivery.
- Surface-mount assembly
- Through-hole assembly
- Prototype through repeat production
[ SMT ASSEMBLY CAPABILITIES ]
What the line
enables.
Fine-pitch through odd-form.
01005 components through large connectors and odd-form parts, including BGA, QFN, QFP, CSP, SOIC, TSOP, PLCC, and leaded packages.
High-mix builds, kept practical.
Double-sided SMT for prototypes through medium volume. Typical quantities are 1–50; builds of 51–250 depend on difficulty and required turnaround.
Programmed for repeatability.
Automated vision alignment, fiducial and polarity verification, and placement checks support controlled builds from BOM, CAD, and centroid data.
RFQ RESPONSE
Clear timing before you commit.
Consignment requests typically receive an initial response in under 24 hours. Turnkey requests requiring sourcing typically take 24–48 hours; hard-to-find parts may take longer.
INSPECTION & TESTING
Verification built into the build.
Automated optical inspection. AOI checks missing, incorrect, shifted, and polarity-sensitive components, plus solder-joint defects. The documented inspection envelope is 50 × 60 mm to 400 × 320 mm.
Cable and harness testing. Cirris Signature Series testing verifies continuity, pinout, wiring accuracy, opens, shorts, miswires, crossed conductors, and contact resistance, with pass/fail traceability and reports available upon request.
ISO 9001:2015-certified manufacturing for communications, industrial automation, industrial RF, and robotics programs.
[ ONE ACCOUNTABLE TEAM ]
Quote through delivery.
- 01RFQ
- 02Project review
- 03Material procurement
- 04Assembly
- 05Inspection
- 06Delivery
[ THE KELYTECH DIFFERENCE ]
Silicon Valley access.
Direct accountability.
Your build stays with one Kelytech team as materials arrive, production moves, and finished assemblies ship. Questions stay close to the work—and close to your engineering team.
[ START A CONVERSATION ]
Share your build
requirements.
Send a BOM, Gerber, drawing, or project summary through Kelytech’s private RFQ form.
Send an RFQ ↗Or call (408) 935-0888
